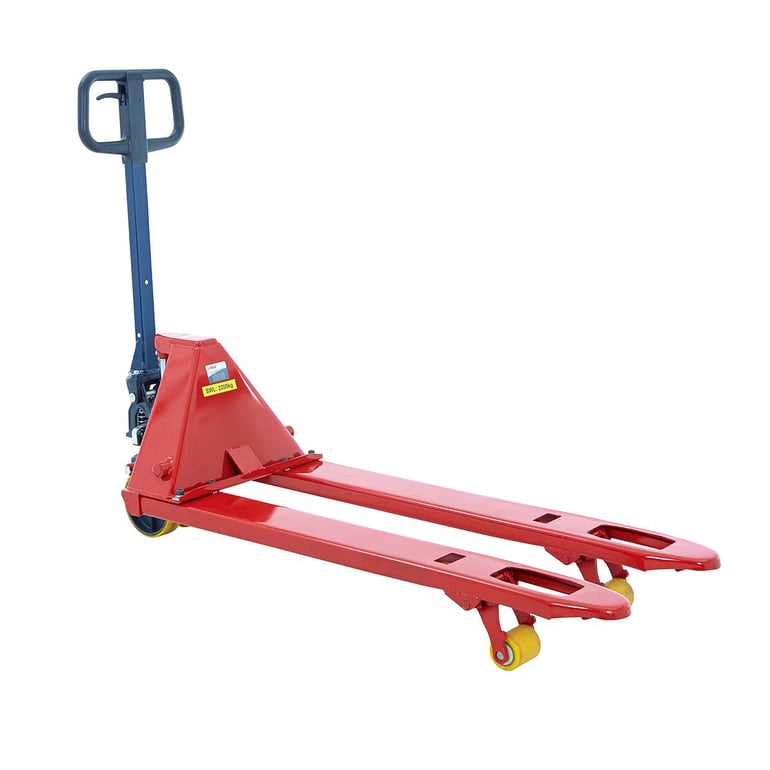

Adjustable pallet truck

2200 kg, fork L 1150 mm x W 530-680 mm

Art. no.: 15-0224
  • 2500 kg load capacity
  • Width adjustable forks
  • Fork height from 76 to 196 mm
Extremely robust and adaptable pallet truck equipped with width-adjustable forks and a lower-than-standard, lowered fork height to cope with a variety of pallet sizes including low pallets and special pallets.

Product information

Thanks to its high load capacity, this robust pallet truck is ideal for heavy everyday use while the adjustable forks mean you can move any type of pallet with one truck. The forks are height-adjustable between 76 and 196 mm, making them suitable for use with lower pallets, such as those from the Far East or USA. The width over the forks is adjusted manually and takes approximately three minutes. The pallet truck is available with a choice of two width adjustment bands: 400-520 mm or 530 to 680 mm. The fork and steering wheels are made of polyurethane; single fork wheels are supplied as standard but can be switched for tandem wheels on request by contacting our sales team.
Thanks to its high load capacity, this robust pallet truck is ideal for heavy everyday use while the adjustable forks mean you can move any type of pallet with one truck. The forks are height-adjustable between 76 and 196 mm, making them suitable for use with lower pallets, such as those from the Far East or USA. The width over the forks is adjusted manually and takes approximately three minutes. The pallet truck is available with a choice of two width adjustment bands: 400-520 mm or 530 to 680 mm. The fork and steering wheels are made of polyurethane; single fork wheels are supplied as standard but can be switched for tandem wheels on request by contacting our sales team.

Documents

Download care instructions

Product specifications

  • Minimum width:530 mm
  • Maximum width:680 mm
  • Lift height:76-196 mm
  • Fork length:1150 mm
  • Fork width:150 mm
  • Colour:Red
  • Material:Steel
  • Load capacity:2200 kg
  • Steering wheel:Polyurethane
  • Fork wheels:Single polyurethane
  • Weight:78 kg
  • Assembly:Assembled
