End frame ULTIMATE
5000x1100 mm, 12500 kg
Art. no.: 23810
- Levelling plates included
- Beams adjustable at 50 mm intervals
- Fixings for concrete floors included
Height (mm)
£235.00
Ex. VAT
Availability
Loading delivery time...
7 year warranty

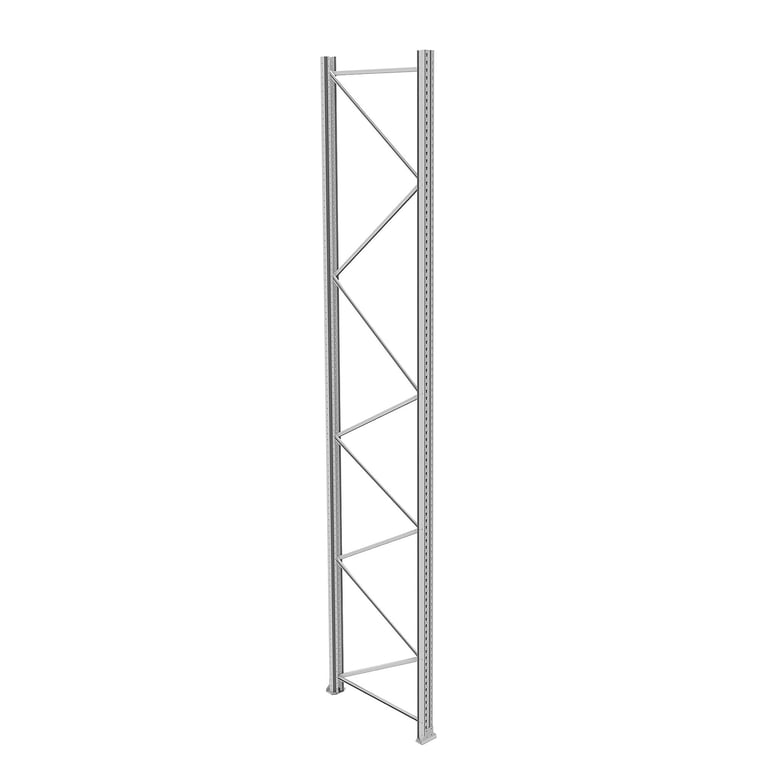

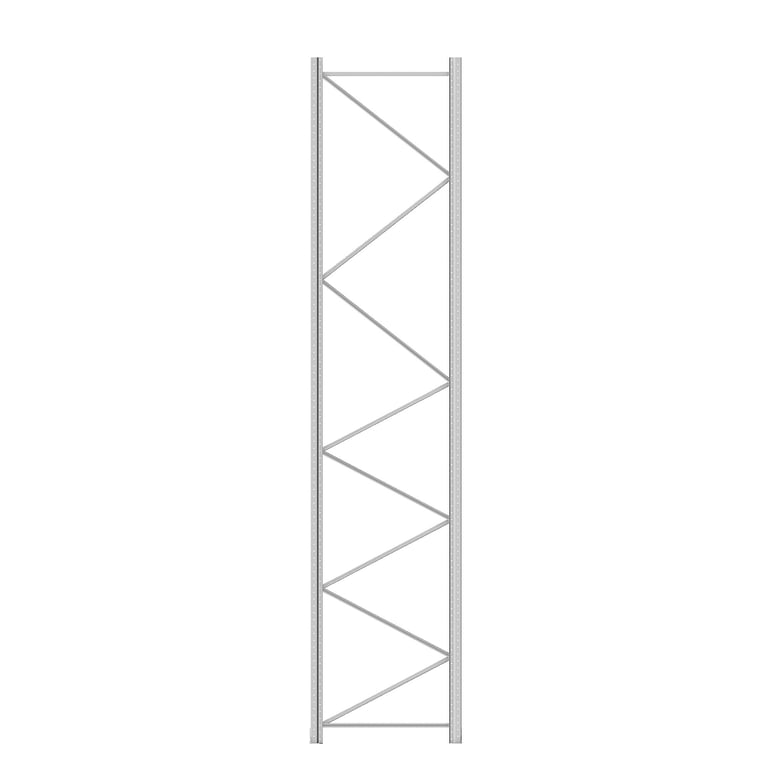

Robust end frame with perforated uprights. Fixings for concrete floors and levelling plates are included.
Product information
Create a complete pallet rack that meets your storage needs by combining end frames and beams. The end frame can also be bought as an addition to an existing ULTIMATE basic or add-on unit and is ideal for constructing your own pallet racking system.
The end frame is available in several different heights, which means that you can design the pallet rack to fit the room and meet your storage needs.
A range of accessories is available for the ULTIMATE pallet rack so that you can customise it to create an efficient logistics, warehousing and goods handling solution.
The end frame is available in several different heights, which means that you can design the pallet rack to fit the room and meet your storage needs.
A range of accessories is available for the ULTIMATE pallet rack so that you can customise it to create an efficient logistics, warehousing and goods handling solution.
Create a complete pallet rack that meets your storage needs by combining end frames and beams. The end frame can also be bought as an addition to an existing ULTIMATE basic or add-on unit and is ideal for constructing your own pallet racking system.
The end frame is available in several different heights, which means that you can design the pallet rack to fit the room and meet your storage needs.
A range of accessories is available for the ULTIMATE pallet rack so that you can customise it to create an efficient logistics, warehousing and goods handling solution.
The end frame is available in several different heights, which means that you can design the pallet rack to fit the room and meet your storage needs.
A range of accessories is available for the ULTIMATE pallet rack so that you can customise it to create an efficient logistics, warehousing and goods handling solution.
Documents
Product specifications
- Height:5000 mm
- Depth:1100 mm
- Upright width:80 mm
- Colour:Galvanised
- Material:Steel
- Load capacity:12500 kg
- Recommended number of people for assembly:2
- Estimated assembly time:15 mins
- Weight:57.41 kg
- Assembly:Delivered unassembled
- Testing:EN 15512, DGUV Regel 108-007, EN 1090-1:2009+A1:2011
